Baffle or switch, ring or no ring: cardiac computed tomography unbaffles a complex congenital heart disease case

Introduction

A male infant born at 39 weeks of gestation presented with a fetal diagnosis of bladder exstrophy and double outlet right ventricle (DORV). Echocardiogram revealed a large subpulmonary conoventricular septal defect. Both great arteries arose from the right ventricle suggesting a diagnosis of DORV. Right aortic arch with a large patent right ductus arteriosus (PDA) was seen with suspicion of an aberrant left subclavian artery (LSCA). The coronary artery anatomy was also not well delineated. Due to the location of the ventricular septal defect (VSD), uncertain coronary artery origin and aortic arch branching pattern, an electrocardiogram (ECG)-gated computed tomography (CT) with dose modulation was performed for planning appropriate surgical procedure and timing of surgery. The CT scan confirmed the diagnosis of DORV but showed a subaortic location of VSD (Figure 1). The LSCA arose from the proximal segment of the left pulmonary artery with normal coronary artery origin and a right sided PDA (Figure 2). The child was initially managed expectantly. However due to worsening pulmonary over circulation and need of increasing medical therapy it was decided to proceed with surgical palliation. After multi-disciplinary meeting among cardiologists, anesthesiologists and cardio-thoracic-surgeons, it was decided that because of the recent upper respiratory infections as well as bladder exstrophy the best approach would be to proceed with surgical palliation consisting of a pulmonary artery banding as opposed to a complete repair which would carry a greater surgical risk. The child underwent palliative pulmonary artery banding and is awaiting corrective surgery.

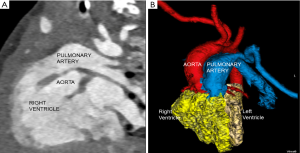

Figure 1 Multiplanar CTA (A) and 3D volumetric (B) images show origin of both aorta and pulmonary artery from right ventricle. CTA, computed tomography angiography; 3D, three-dimensional.

Figure 2 Isolated left subclavian artery. Volumetric 3D images (A,B) show origin of left subclavian artery from the left pulmonary artery without formation of vascular ring. 3D, three-dimensional.

Discussion

An isolated or anomalous LSCA is a rare entity. It is seen in association with other congenital heart diseases and chromosomal aberrations like 22q11 deletion. This vascular malformation does not constitute a complete vascular ring, especially with a PDA that is ipsilateral to the arch sidedness (1). Embryologically, there is involution of the aortic arch at two segments: between the left subclavian and left common carotid artery and distal to the right ductus and right subclavian artery. The subclavian artery is supplied by either the pulmonary (via ductus) artery or the vertebral artery (2). In our case the VSD was thought to be subpulmonary on the echocardiogram due to the location of the conal septum and the right ventricular papillary muscle which gave the appearance of a subpulmonary VSD, when indeed this was the right ventricular outflow tract (Figure 3). Multiplanar three-dimensional (3D)-CT provided accurate information about the routability of the VSD and showed that a baffle could be constructed from the left ventricle to the aorta via the VSD without any obstruction (Figure 4). The decision to employ CT angiography (CTA) instead of magnetic resonance angiography was taken due to underlying critical condition of the child. CTA was thus indispensable in our patient’s context for providing a timely and accurate diagnosis without the need for long-term sedation. CTA also avoided an invasive cardiac catheterization for diagnostic purposes.

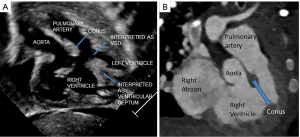

Figure 3 Echocardiogram misrepresentation of VSD. Echocardiogram (A) and multiplanar CTA images (B) show prominent conus and right ventricle papillary muscle that was wrongly interpreted as VSD on echocardiogram. VSD, ventricular septal defect; CTA, computed tomography angiography.

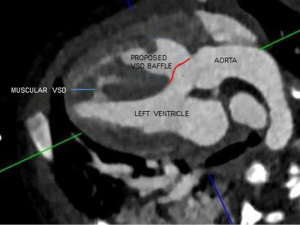

Figure 4 Routability of VSD. Multiplanar CTA provides information about baffling the left ventricle to aorta through VSD. VSD, ventricular septal defect; CTA, computed tomography angiography.

Hemodynamics

The utility of CT also lies in that the available data set could also be employed for advanced post-processing techniques to generate hemodynamics information using computational modelling (3-5). Computational flow dynamics (CFD) can be generated from several commercial available software. Computational fluid dynamics would provide some insights into the flow patterns in the unusual arterial anatomy. The data may help in surgical planning of univentricular versus biventricular surgery. CFD analysis may provide hemodynamic data by the virtually created surgical baffles.

3D printing

The CT data sets also provide option for producing patient-specific 3D anatomical models especially in complex congenital heart diseases as ours. Recently, virtual 3D holographic images have also been suggested as an alternative to physical 3D models. Both anatomical and holographic 3D models may improve surgical outcomes with decrease in intra-operative complication (6,7). 3D models are likely to give impetus to better teaching in the academic world.

Our case provides indispensable utility of 3D-CT in diagnosing complex congenital heart disease and in planning the right surgical procedure and timing with an added option for providing 3D models and hemodynamics data if needed.
