Original Article

Comparison of implantation depth between three-cusp and cusp-overlap views for a self-expanding transcatheter heart valve: a cross-sectional analysis

Won-Keun Kim1,2,3,4^, Matthias Renker1,2,4, Yeong-Hoon Choi2,4, Christian W. Hamm1,3,4, Efstratios I. Charitos2

1Department of Cardiology, Kerckhoff Heart Center, Bad Nauheim, Germany; 2Department of Cardiac Surgery, Kerckhoff Heart Center, Bad Nauheim, Germany; 3Department of Cardiology, Justus Liebig University of Giessen and Marburg, Giessen, Germany; 4DZHK (German Center for Cardiovascular Research), Partner Site Rhein-Main, Bad Nauheim, Germany

Contributions: (I) Conception and design: WK Kim, EI Charitos; (II) Administrative support: YH Choi, CW Hamm; (III) Provision of study materials or patients: WK Kim, M Renker; (IV) Collection and assembly of data: WK Kim, M Renker; (V) Data analysis and interpretation: WK Kim, EI Charitos; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0002-0799-7478.

Correspondence to: Won-Keun Kim, MD, PhD. Department of Cardiology, Kerckhoff Heart Center, Benekestr, 2-8, 61231 Bad Nauheim, Germany. Email: w.kim@kerckhoff-klinik.de.

Background: The standard angulation for the implantation of the ACURATE neo2 (Neo2) valve is the 3-cusp view (3-CV). The cusp-overlap view (COV) may allow for a more precise assessment of the prosthesis position but has not been used for the Neo2. The aim of the present study was to compare the implantation depth (ID) determined in the COV and in the 3-CV among Neo2 recipients.

Methods: The study cohort consisted of 189 patients who underwent transcatheter aortic valve replacement using the Neo2 for whom cine-fluoroscopic images in both the 3-CV and COV were analyzable after implantation of the prosthesis. We assessed baseline characteristics and procedural data. For each patient, the ID was measured in both angulations and was compared using the Wilcoxon signed-rank test. In a subset of patients (n=35), pre-deployment (before step 2) angulations were available in the 3-CV and the COV for determination of the distance between the annular plane and the radiopaque positioning marker in the same position.

Results: The median ID3-CV was 5.1 mm [interquartile range (IQR), 3.9; 6.0 mm], the IDCOV was 3.3 mm (IQR, 2.3; 4.9 mm), and the difference between ID3-CV and IDCOV was 1.3 mm (IQR, 0.9; 1.9 mm). The ID3-CV was predominantly greater than the IDCOV (n=176; 93.1%). Intra-individual pre-deployment measurements showed that in the COV the prosthesis position appeared to be higher [2.3 (IQR, 1.3; 2.8) vs. 1.0 (IQR, 0; 1.4) mm; P<0.001].

Conclusions: ID measurement of the Neo2 valve yields predominantly greater values in the 3-CV than in the COV. Accordingly, in the pre-deployment assessment the prosthesis appears to be in a higher position in the COV. Hence, based on the current positioning strategy we assume that the implantation of the Neo2 in the COV would result in lower positioning than in the 3-CV.

Keywords: Cusp overlap; co-planar view; positioning; implantation view; ACURATE


Received: 29 August 2022; Accepted: 26 September 2022; Published: 30 December 2022.

doi: 10.21037/jxym-22-26


Introduction

Precise positioning is an important prerequisite of procedural success for transcatheter aortic valve replacement (TAVR) (1,2). Malpositioning increases the risk of device embolization, device failure in terms of paravalvular regurgitation (PVR) or increased transvalvular gradients, and occurrence of conduction disturbances and permanent pacemaker implantation (PPI), particularly in the event of low prosthesis positioning (2,3). In recent years, novel techniques have emerged to optimize prosthesis deployment. The cusp-overlap view (COV) technique is being increasingly used for precise implantation of the Evolut platform, with higher than usual positioning and consequently lower PPI rates (4-6). In the COV, the nadir of the left and right coronary cusp (LCC, RCC) overlap, and the left ventricular outflow tract (LVOT) can be appreciated without foreshortening, whereas in the traditional 3-cusp view (3-CV), the prosthesis may appear higher than it actually is.

The standard implantation view for the self-expanding ACURATE neo2 (Neo2) transcatheter heart valve (THV) is the 3-CV (7). Thus far, except for a case report (8) no systematic data exists regarding the implementation of the COV technique for the implantation of the ACURATE platform. We assumed that in the COV the implantation depth (ID) might be greater than in the 3-CV with the clinical implication of higher PPI rates.

The aim of the present study was to determine the ID measured at the non-coronary cusp (NCC) in the COV and compare it with the ID measured in the traditional 3-CV among Neo2 recipients. We present the following article in accordance with the STROBE reporting checklist (available at https://jxym.amegroups.com/article/view/10.21037/jxym-22-26/rc).


Methods

Study design

In this retrospective cross-sectional analysis, consecutive patients who underwent transfemoral TAVR for native aortic stenosis using the Neo2 THV in our center between June 2021 and March 2022 were considered. Inclusion criteria were the availability of final aortography and/or fluoroscopy in both the 3-CV and the COV view and the placement of a 0.035-inch wire in the NCC as landmark for the annular plane throughout the entire procedure. The latter allows for clear visualization of the nadir and hence precise measurement of the ID (Figure 1) (9). Exclusion criteria were TAVR for pure aortic regurgitation, bicuspid aortic valve, degenerated surgical or transcatheter bioprosthesis, and the use of alternative access routes. Further excluded were patients without aortography and/or fluoroscopy available in both the 3-CV and COV, those in whom the wire technique was not applied, those with cases of severe parallax as defined further below, and those in whom both the 3-CV and COV were available, but one of the angulations did not match the multidetector computed tomography (MDCT)-derived implantation view with a deviation exceeding >3° in either the 3-CV or the COV (referred to as incongruent).

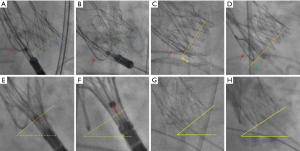

Figure 1 Measurements of prosthesis position. (A) shows an example of mild parallax, with the distance between the ventricular aspect of the lower crown (indicated by the dotted blue line) and the opposite aspect of the lower crown (represented by the green dotted line) not exceeding the first cell row. In (B), there is severe parallax with the distance between the dotted blue line and the green dotted line exceeding the first cell row. Measurement of the implantation depth in the 3-CV [yellow double arrow in (C)] and in the COV [green double arrow in (D)]. The dotted orange line denotes the annular plane, indicated by the 0.035'' wire (red arrows). In a subset of patients, the position of the prosthesis prior to step 2 (final deployment) was recorded in both the 3-CV and the COV. We measured the distance between the annular plane and the center of the radiopaque marker band in both angulations [red double arrows in (E,F)]. For a more precise determination of the correct angulation of the annular plane, we took into account the angle between a horizontal line and the inflow part of the deployed prosthesis in both angulations [yellow dotted angles in (E,F) derived from the yellow angle of the prosthesis after deployment in the 3-CV and the COV in (G,H)]. 3-CV, 3-cusp view; COV, cusp-overlap view.

Indications for TAVR, including the access route and type and size of the prosthesis, were discussed within a heart team consisting of a cardiac surgeon, an interventional cardiologist, and a cardiac anesthetist in adherence to current guidelines (10). All procedures were performed in a hybrid operating room with conscious sedation. Baseline characteristics including demographics, co-morbidities, risk scores, and echocardiography data as well as procedural data and in-hospital outcomes were prospectively documented in a dedicated database. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee of the University of Giessen and individual consent for this retrospective analysis was waived.

ID measurements

The MDCT-derived 3-CV was verified angiographically and adjusted if necessary. After adjustment of the 3-CV, the COV was corrected accordingly. After successful deployment of the prosthesis, cine-fluoroscopic images were obtained in both the 3-CV and COV. However, the final c-arm position was at the discretion of the operator and was adjusted to reduce radiation dose or improve image degradation in very extreme angulations. The difference between the 3-CV and the COV [∆ (3-CV–COV)] was determined in the anterior-oblique and cranio-caudal angulation. Severe parallax was defined as non-perpendicular prosthesis alignment with an incongruence of the lower crown margin exceeding the opposite lower cell row, whereas mild parallax was defined as incongruence of the lower crown margin exceeding only half of the opposite lower cell row (Figure 1A,1B). All cine-fluoroscopy images were analyzed off-line on a dedicated workstation (Syngo, Siemens, Forchheim, Germany) using Table-to-Object-Distance automatic calibration. The ID was defined as the distance between the inflow part of the prosthesis (lower crown) and the aortic annular plane indicated by the positioning wire in the NCC and was measured in the 3-CV (ID3-CV) and in the COV (IDCOV) (Figure 1C,1D).

Pre-deployment assessment of prosthesis position

In a subset of patients, fluoroscopic angulations were available both in the 3-CV and the COV after completion of step 1 of the prosthesis implantation (release of the upper crown and stabilization arches). Step 1 was monitored in the 3-CV, and after completion of step 1 the position was recorded using cine-fluoroscopy in the 3-CV and immediately thereafter in the COV. Measurements were made between the central part of the radiopaque positioning marker and the annular plane. For the latter, the angle between a virtual horizontal line and the inflow part of the deployed prosthesis was taken into account (Figure 1E-1H).

Computed tomography measurements

Pre-procedural MDCT of the entire aorta and ilio-femoral arteries was performed as part of the routine clinical workup using a 64-slice or a 192-slice dual-source scanner (Somatom Definition or Force, Siemens Healthcare, Forchheim, Germany), as previously described (11).

MDCT datasets were analyzed in a standard fashion using dedicated software (3mensio, Piemedical, The Netherlands). The 3-CV and the COV were determined as described earlier (4).

Outcomes of interest

The main outcome of interest was the difference between ID3-CV and IDCOV at the NCC [∆(ID3-CV − IDCOV)] and the distribution of cases in which ID3-CV was larger, similar, or smaller than IDCOV. Secondary outcome measures were in-hospital outcomes according to the Valve Academic Research Consortium (VARC)-3 criteria and 30-day all-cause mortality (12).

Statistical analysis

Continuous variables are given as median and interquartile range (IQR); categorical data are presented as numbers and percentages. Continuous data were compared using the Wilcoxon rank-sum test and the Wilcoxon signed-rank test for paired analyses; categorical data were compared using the Fisher’s exact test or Chi-squared test, as appropriate. The correlation of continuous variables was determined using the Pearson method. Agreement between the various measurement methods of the ID was examined with the Bland-Altman test. Linear regression analysis was used to determine independent predictors of ∆(ID3-CV − IDCOV) by entering all covariates into the multivariable analysis that in the univariate analysis had P values ≤0.1. A two-sided P value <0.05 was considered significant. All analyses were performed using STATA IC version 16.1 (StataCorp LCC, College Station, Texas, USA) and R version 4.1.3 (R Core Team (2022). R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. URL https://www.R-project.org/).


Results

Study cohort

A total of 290 patients underwent transfemoral TAVR using the Neo2 device in our institution between June 2021 and March 2022. After exclusion of 101 patients for various reasons, the final study cohort consisted of 189 patients (Figure 2). The baseline characteristics of the final study population are shown in Table 1. The median age was 82 years (IQR, 78; 85 years) and 54.0% were female. Procedural data and in-hospital outcomes are provided in Table 2.

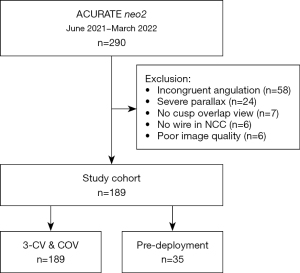

Figure 2 Study flowchart. For study inclusion, consecutive patients undergoing transfemoral TAVR using the ACURATE neo2 in the specified time period were considered. After exclusion of 101 patients for the reasons shown, the final study cohort consisted of 189 patients. Post-implantation fluoroscopic images with congruence between the 3-CV and COV were available in all 189 patients. In a subset of patients, pre-deployment fluoroscopic images in both the 3-CV and the COV were available in 35 cases. 3-CV, 3-cusp view; COV, cusp-overlap view; NCC, non-coronary cusp; TAVR, transcatheter aortic valve replacement.

Table 1

Baseline characteristics

Variables Total cohort (n=189)
Age, years 82 [78; 85]
Female sex 102 (54.0)
Body mass index, kg/m2 27.3 [24.3; 31.6]
EuroSCORE II, % 2.6 [1.7; 4.5]
eGFR, mL/min/1.73 m2 69 [48; 88]
Hypertension 164 (86.8)
Diabetes 65 (34.4)
Hyperlipidemia 108 (57.1)
Coronary artery disease 104 (55.0)
Atrial fibrillation 80 (42.3)
Prior permanent pacemaker 26 (13.8)
Ejection fraction, % 65 [60; 65]
Mean gradient, mmHg 42 [31; 50]
Aortic valve area, cm2 0.8 [0.6; 0.9]
AVCS, AU 2,292 [1,486; 3,111]
Aorto-annular angle, ° 49 [43; 55]

Values denote median [interquartile range] or n (%). AVCS, aortic valve calcium score; AU, Agatston units; eGFR, estimated glomerular filtration rate.

Table 2

Procedural characteristics and outcome data

Variables Total cohort (n=189)
Prosthesis size
   S, 23 mm 42 (22.2)
   M, 25 mm 75 (39.7)
   L, 27 mm 72 (38.1)
Procedural duration, min 39 [34; 48]
Fluoroscopy time, min 8.1 [6.1; 11.0]
Contrast agent, mL 25 [20; 43]
Pre-dilatation 168 (88.9)
Post-dilatation 67 (35.4)
Malpositioning 3 (1.6)
Ejection fraction post, % 65 [65; 65]
Mean gradient post, mmHg 9 [7; 12]
Aortic valve area post, cm2 1.7 [1.5; 2.0]
Paravalvular regurgitation ≥ moderate 1 (0.5)
Technical success (VARC-3) 180 (95.2)
Device success (VARC-3) 130 (68.8)
Complications
   30-day all-cause mortality 1 (0.6)
   Early safety endpoint (VARC-3) 31 (16.4)
   Aortic dissection 0
   Annular rupture 0
   Coronary obstruction 0
   Conversion to sternotomy 0
   Multiple valve implantation 1 (0.5)
   Device embolization 0
   Major vascular complication 10 (5.3)
   Severe bleeding (types 2–4) 11 (5.8)
   Any stroke 3 (1.6)
   Acute kidney injury (stages 2–4) 2 (1.1)
   Pacemaker implantation 12 (6.3)
   New-onset LBBB 23 (12.2)

Values denote median [interquartile range] or n (%). S, small; M, medium; L, large; LBBB, left bundle branch block; VARC, Valve Academic Research Consortium.

Implantation views and depth measurements

The results of the ID measurements are summarized in Table 3 and in the Figure 3. In the anterior-oblique angulation, ∆(3-CV–COV) was 24° (IQR, 21°; 27°), and in the cranio-caudal angulation, the difference was 25° (IQR, 21°; 28°). The median ID3-CV was 5.1 mm (IQR, 3.9; 6.0 mm), and the median IDCOV was 3.3 mm (IQR, 2.3; 4.9 mm), with a high correlation between the two values (R=0.89; P<0.001) and an excellent agreement in the Bland-Altman analysis (Figure 4). ∆(ID3-CV − IDCOV) was 1.3 mm (IQR, 0.9; 1.9 mm), and ID3-CV was usually greater than IDCOV (n=176; 93.1%) (Figure 5).

Table 3

Implantation depth

Variables Total cohort (n=189)
ID3-CV NCC, mm 5.1 [3.9; 6.0]
IDCOV NCC, mm 3.3 [2.3; 4.9]
∆(ID3-CV − IDCOV), mm 1.3 [0.9; 1.9]
Relation of ID at NCC
   ID3-CV > IDCOV 176 (93.1)
   ID3-CV = IDCOV 6 (3.2)
   ID3-CV < IDCOV 7 (3.7)
∆(ID3-CV − IDCOV) ≥1 mm 132 (69.8)
Angulation 3-CV, °
   Anterior-oblique 9 [2; 15] (LAO)
   Cranio-caudal 0 [CAU 5; CRA 7]
Angulation COV, °
   Anterior-oblique 15 [8; 21] (RAO)
   Cranio-caudal 24 [18; 29] (CAU)
∆(3-CV − COV), °
   Anterior-oblique 24 [21; 27]
   Cranio-caudal 25 [21; 28]

Values denote median [Interquartile range] and n (%). ∆(ID3-CV − IDCOV), difference between implantation depth in the 3-CV and the COV; ∆(3-CV − COV), difference between 3-CV and COV; ID3-CV, implantation depth measured in the 3-cusp view; IDCOV, implantation depth measured in the cusp-overlap view; 3-CV, 3-cusp view; COV, cusp-overlap view; NCC, non-coronary cusp; RAO, right anterior oblique; LAO, left anterior oblique; CAU, caudal; CRA, cranial.

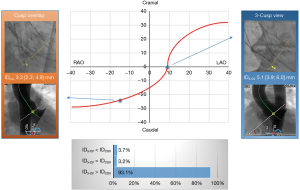

Figure 3 Implantation depth in the 3-CV versus the COV. The figure depicts the relation between the ID3-CV and the IDCOV. On average, the angulation in the 3-CV was at LAO 8°, cranio-caudal 0° (blue dot on the x-axis), whereas in the COV it was at RAO 15°, caudal 24° (blue dot in the third quadrant). The bar graph shows that in the vast majority (93.1%), ID3-CV was larger than IDCOV. ID3-CV, implantation depth in the 3-cusp view. The orange dotted line represents the annular plane. The green double arrow represents the ID in the COV, the yellow double arrow denotes the ID in the 3-CV. IDCOV, implantation depth in the cusp overlap view; RAO, right anterior oblique; LAO, left anterior oblique; ID3-CV, implantation depth measured in the 3-cusp view; 3-CV, 3-cusp view; COV, cusp-overlap view.

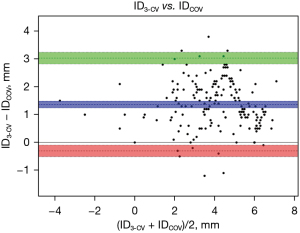

Figure 4 Bland-Altman plot. There was excellent agreement between ID3-CV and IDCOV: mean bias (blue dotted line) 1.36 mm (95% CI: 1.24; 1.49 mm); lower limit of agreement (red dotted line) −0.31 mm (95% CI: −0.51; −0.10 mm); upper limit of agreement (green dotted line) 3.03 mm (95% CI: 2.82; 3.24 mm). ID3-CV, implantation depth measured in the 3-cusp view; IDCOV, implantation depth measured in the cusp-overlap view; CI, confidence interval.

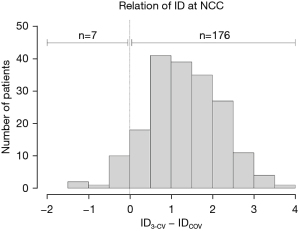

Figure 5 Distribution of ∆(ID3-CV − IDCOV). The bar graph illustrates the distribution of ∆(ID3-CV − IDCOV) in increments of 0.5 mm. Among patients in whom ID3-CV was larger than IDCOV (n=176), the distribution was even between 0.5 and 2.5 mm with a peak difference at 1.0 mm, whereas among patients in whom ID3-CV was smaller than IDCOV (n=7), differences were very small. ∆(ID3-CV − IDCOV), difference between implantation depth in the 3-CV and the COV; ID3-CV, implantation depth measured in the 3-cusp view; IDCOV, implantation depth measured in the cusp-overlap view; NCC, non-coronary cusp.

Positioning prior to valve deployment

In the subset of patients (n=35) with available measurements of the distance between the radiopaque marker band and the annular plane prior to step 2 (full prosthesis deployment), the distance in the 3-CV was smaller than in the COV [1.0 (IQR, 0; 1.4) vs. 2.3 (IQR, 1.3; 2.8) mm; P<0.001].

Predictors of ∆(ID3-CV − IDCOV)

In the multivariable analysis, only a larger ∆(3-CV – COV) in the cranio-caudal angulation was independently related to ∆(ID3-CV − IDCOV) (Table 4).

Table 4

Factors determining ∆(ID3-CV −IDCOV)

Variables Coefficient (95% CI) P Adjusted coefficient (95% CI) P
∆(3-CV − COV) anterior-oblique, per ° −0.023 (−0.046; 0.001) 0.051
∆(3-CV − COV) cranio-caudal, per ° 0.043 (0.020; 0.067) <0.001 0.054 (0.025; 0.084) <0.001
Aorto-annular angle, per ° 0.012 (−0.002; 0.026) 0.085
Mild parallax 0.038 (−0.236; 0.313) 0.783

∆(ID3-CV − IDCOV), difference between implantation depth in the 3-CV and the COV; ∆(3-CV − COV), difference between 3-CV and COV; ID3-CV, implantation depth measured in the 3-cusp view; IDCOV, implantation depth measured in the cusp-overlap view; 3-CV, 3-cusp view; COV, cusp-overlap view; CI, confidence interval.


Discussion

The present study represents the first comparison of the ID measurement in the 3-CV versus the COV. The main finding is that ID3-CV and IDCOV usually differ, with predominantly greater values for ID3-CV than for IDCOV. Accordingly, pre-implantation assessment of the device position revealed that the prosthesis appears to be higher (more aortic) in the COV than in the 3-CV.

Technical considerations

Our findings comparing the 3-CV and the COV in terms of ID and pre-implantation position are counter-intuitive and difficult to explain. Theoretically, the COV represents the most appropriate plane for assessment of the ID at the NCC, as it allows for a non-foreshortened view of the LVOT (4). It has been suggested that implantation using the COV enables precise positioning and is associated with lower rates of PPI (5,6,13). Therefore, one would expect that the IDCOV would appear greater than the ID3-CV, whereas the pre-implantation position should appear lower in the COV than in the 3-CV.

In a recent publication, of 444 TAVR cases using the Evolut R prosthesis, 161 pairs were identified by means of propensity score matching to compare outcomes of implantation in the COV versus the standard implantation view that was not further specified. Among COV cases, the ID at the NCC was smaller (4.2 vs. 5.3 mm; P<0.001), and the PPI rate was lower (11.8% vs. 21.7%; P=0.03) (6). In a study by Sammour et al., among recipients of the SAPIEN 3 balloon-expandable device, a high implantation technique performed in the COV led to a smaller ID (1.5±1.6 vs. 3.2±1.9 mm; P<0.001) along with lower PPI rates (5.5% vs. 13.1%; P<0.001) in comparison with procedures using the 3-CV (13). Even though the ID in the COV groups was smaller than that in the standard implantation groups, it is important to note that in those studies comparisons were made between COV and 3-CV groups, and therefore the difference may rather have been a result of a higher implantation strategy in the COV group. This is in contrast to the present study in which IDCOV was compared with ID3-CV within the same patient, thus representing the intra-individual difference between the two implantation views. Nonetheless, we assume that the discrepancy between ID3-CV and IDCOV found in the present analysis, with values of ID3-CV being mostly greater, would be found for any valve type, provided intra-individual measurements are available.

Clinical implications

Data comparing implantation in the 3-CV vs. the COV are limited to retrospective observational studies with small to moderate sample sizes and are essentially confined to the self-expanding Evolut platform and the balloon-expandable SAPIEN 3 device. However, all studies consistently demonstrated that implantation using the COV technique markedly reduces PPI rates when compared with the standard implantation technique in the 3-CV. For the Evolut platform, reduced PPI rates were reported to range from 6.5% to 13.1% in the COV group vs. 17.8% to 30.9% in the 3-CV group (5,6).

The most urgent question is whether the application of the COV for the implantation of the ACURATE neo2 valve will likewise result in lower PPI rates. The present study cannot ultimately address this specific question, as the final release of the prosthesis was exclusively performed in the 3-CV. Nonetheless, post-deployment assessments of the ID in the 3-CV and the COV were available in the entire study cohort, and in a subset of patients, pre-implantation views were obtained both in the 3-CV and COV immediately before step 2.

Based on the current standard positioning technique in the 3-CV, which takes into account that the radiopaque positioning marker on the delivery catheter should be at the annular level, our results suggest that the implantation of the Neo2 in the COV would result in a lower position as the device appears to be higher in the COV than in the 3-CV. This in turn may serve to increase the PPI rate rather than to reduce it. Furthermore, it may be assumed that the standard technique for implantation of the Neo2 in the 3-CV overestimates the “true” ID (i.e., the prosthesis position appears to be lower than it actually is). Therefore, application of the COV for implantation of the Neo2 will require a revision of the positioning strategy that should involve establishing a higher position of the radiopaque marker that is slightly above the annular plane.

Further differences between device platforms that should be considered involve the mechanism of deployment as well as the procedural phase and the marker used for the assessment of the device position. The release of the Evolut valve is from the bottom up, and the COV is predominantly used for the assessment of the initial device position (namely, the inflow part) and during the early phase of deployment. In contrast, the Neo2 device is characterized by a top-down deployment, and the positioning relies on the radiopaque positioning marker prior to step 2. Finally, in addition to improved assessment of the device position, use of the COV also involves less interaction of the Evolut prosthesis in the LVOT, which does not apply to the Neo2 system.

Determinants of the difference in ID ∆(ID3-CV − IDCOV)

Our predictor analysis revealed that only the difference in the cranio-caudal angulation is independently related to ∆(ID3-CV – IDCOV). Therefore, especially in the event of larger differences in the cranio-caudal angulation, ∆(ID3-CV – IDCOV) should be expected to be larger and must be taken into account for a complementary assessment in both angulations.

Limitations

The results of the present study have to be interpreted in the light of several limitations. IDs were measured retrospectively, even though all other data were collected prospectively, and measurements were not adjudicated by a core laboratory. Furthermore, the ID was determined only at the NCC, although this has been shown to be mostly indicative for the prediction of conduction disturbances (6,14). The analysis is purely observational without any intervention or randomization; hence our findings are at best hypothesis generating and must be confirmed by adequately designed studies. Due to the exclusion of a relatively high number of cases, reporting of clinical outcomes may be biased; however, the focus of the present analysis was on the ID and not on clinical outcomes.


Conclusions

ID measurement of the Neo2 valve revealed predominantly greater values in the 3-CV than in the COV. Accordingly, pre-implantation assessment of the prosthesis showed that the prosthesis appeared to be in a higher position in the COV than in the 3-CV. Hence, based on the current positioning strategy we assume that implantation of the Neo2 in the COV would result in lower positioning than in the 3-CV.
